Nylon Lock Nuts

DIN6926

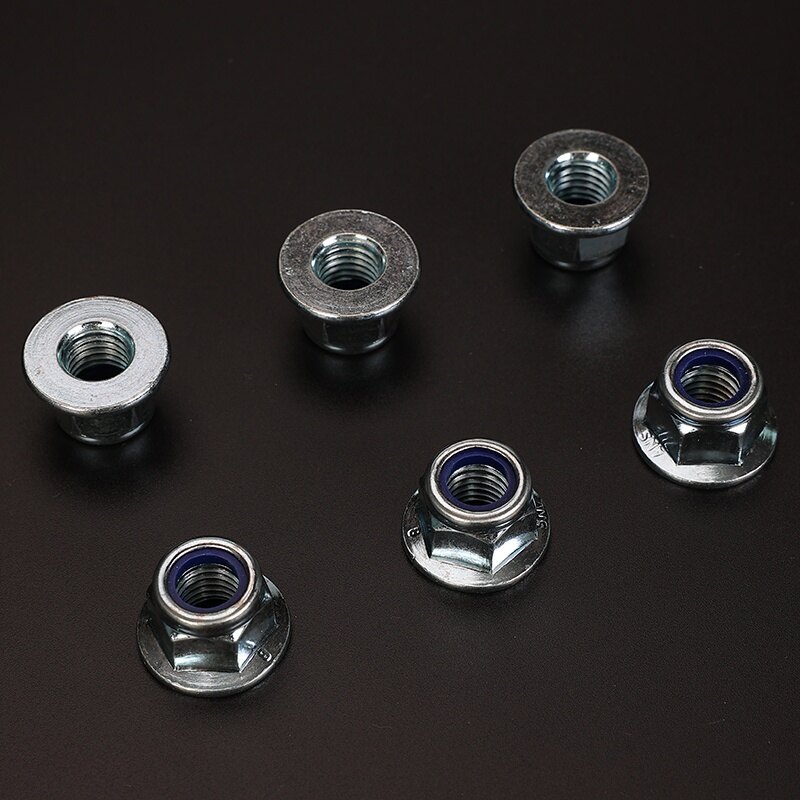

DIN6926 flange nylon lock nuts combine a flanged base with a nylon insert for superior anti-vibration locking. The flange provides wider load distribution and eliminates the need for a separate washer, while the nylon ring ensures reliable resistance to loosening under dynamic loads. Manufactured through precision cold heading process for consistent quality.

Specifications

Standard

DIN 6926

Size Range

M5 - M20

Thread

Metric coarse thread

Material

Carbon Steel / Stainless Steel

Property Class

Class 8 / Class 10

Surface Finish

Zinc Plated / HDG / Plain

Nylon Insert

PA66 (Polyamide 66)

Temperature Range

-40°C to +120°C

Request a Quote

Key Features

Integrated flange eliminates need for separate washer
Nylon insert provides reliable anti-vibration locking
Cold heading formed for consistent dimensional accuracy
Reusable multiple times without losing locking performance
Wide flange surface distributes load evenly
Available in various surface treatments for corrosion resistance

Applications

Automotive engine assembly
Industrial machinery and equipment
Railway and transportation
Construction and structural steel
Electrical enclosures and panels
Agricultural machinery

Need Custom Specifications?

We support custom sizes, materials, and surface treatments. Contact us with your requirements for a tailored quote.
