Nylon Lock Nuts

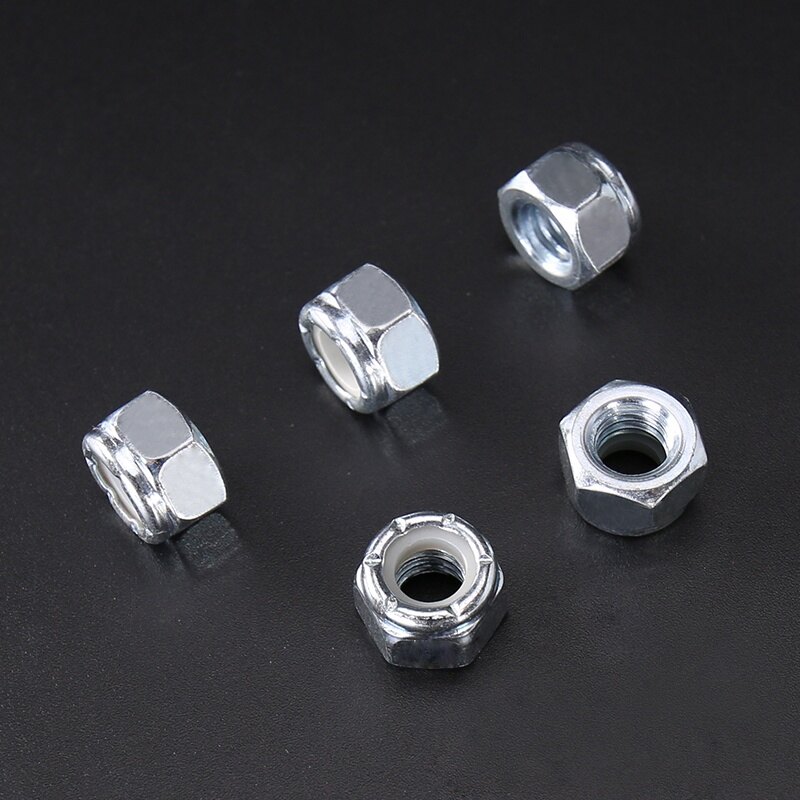

ANSI Lock Nut
ANSI standard nylon lock nuts conform to American National Standards Institute specifications. Features nylon insert for reliable anti-vibration locking. Cold heading formed for precise threading and consistent quality suitable for North American markets.
Specifications
Standard
ANSI/ASME B18.16.6
Size Range
#4 - 1-1/2"
Thread
UNC / UNF
Material
Carbon Steel / Stainless Steel
Grade
Grade 2 / Grade 5 / Grade 8
Surface Finish
Zinc Plated / HDG / Plain
Nylon Insert
PA66 (Polyamide 66)
Temperature Range
-40°C to +120°C
Key Features
- Conforms to ANSI/ASME standards
- Suitable for North American markets
- Nylon insert for vibration resistance
- Available in UNC and UNF threads
- Cold heading formed for precision
- Multiple grade options available
Applications
- Automotive (North American)
- Industrial machinery
- Construction equipment
- Agricultural machinery
- Electrical enclosures
- General assembly
Need Custom Specifications?
We support custom sizes, materials, and surface treatments. Contact us with your requirements for a tailored quote.
